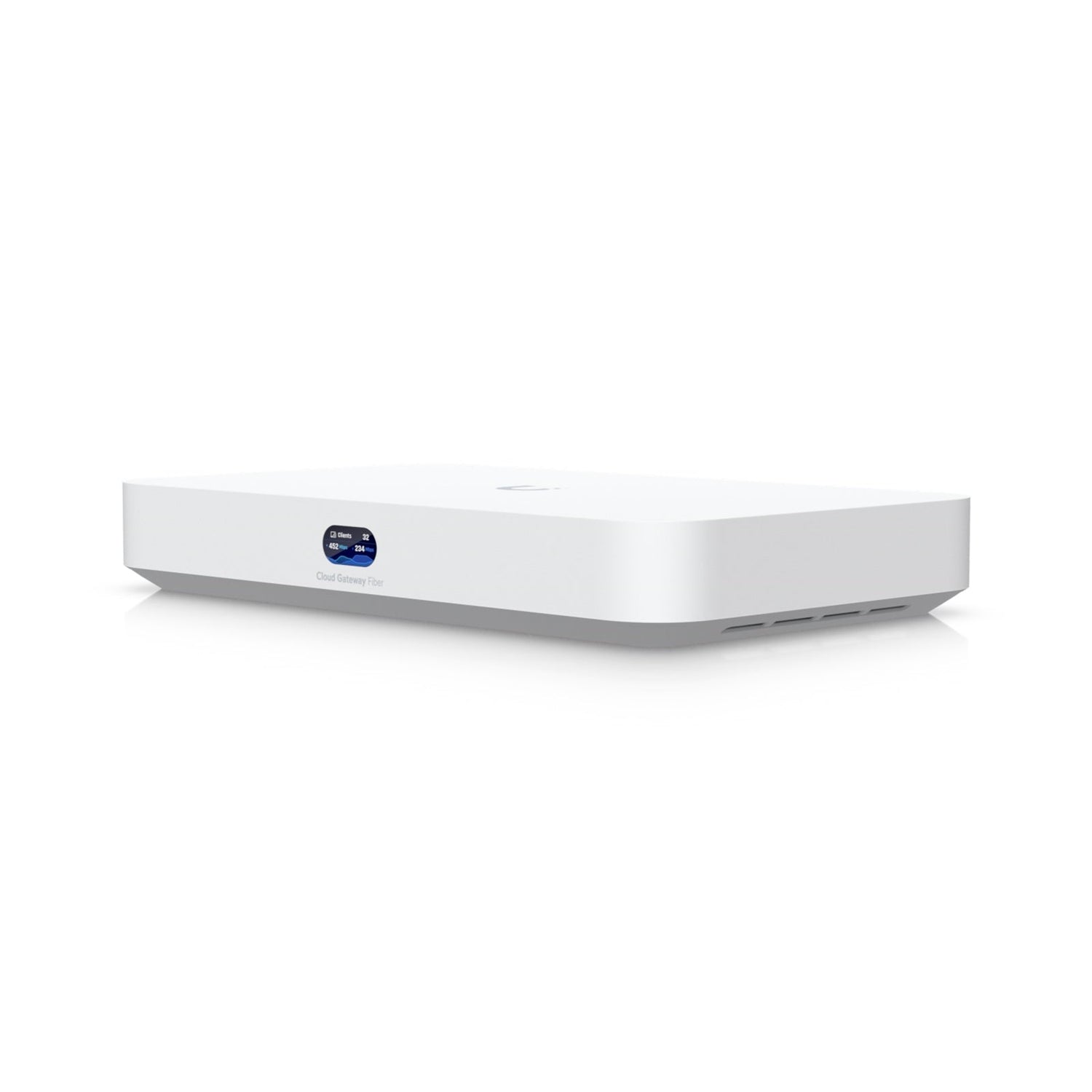

Ubiquiti UCG-FIBER UniFi Cloud Gateway Fiber Combined 2.5 GBE Switch, NVR, Router and Gateway

UniFi Desktop 10G Cloud Gateway with Integrated 2.5 GbE Switch & NVR Storage

A compact, high-performance 10G cloud gateway with an integrated 4-port 2.5 GbE switch, selectable NVR storage, and full UniFi application support.

Key Features

• 10G Cloud Gateway with advanced routing and security
• Integrated 4-port 2.5 GbE switch
• Selectable NVMe SSD NVR storage up to 2 TB
• Full UniFi Application Suite support:
• UniFi Network
• UniFi Protect
• UniFi Access
• UniFi Talk
• UniFi Connect
• Compact desktop form factor
• License-free SD‑WAN and advanced VPN options
• Integrated RADIUS server with RadSec support
• PoE support with 30W total budget

UniFi Application Suite

• Network: Yes
• Protect: Yes
• Access: Yes
• Talk: Yes
• Connect: Yes

Performance & Capacity

• Managed UniFi Devices: 50+
• Managed Cameras:
• (15) HD
• (8) 2K
• (5) 4K
• Simultaneous Users Connected: 500+
• IDS/IPS Throughput: 5 Gbps
• MAC Address Table Size: 4000

Ports & Connectivity

• Default WAN Ports:
• (1) 10G SFP+

• (1) 10 GbE RJ45

• LAN Ports:

• (1) 10G SFP+

• (4) 2.5 GbE RJ45

• Additional Internet Failover:

• UniFi LTE Backup support

Security & Firewall

• Stateful Firewall: Yes
• Application-Aware Layer 7 Firewall: Yes
• DPI and Traffic Identification: Yes
• Zone-Based Firewall Advanced Filtering: Yes (Regions, Domains, Apps)
• Content Filtering: Yes
• Intrusion Prevention (IPS/IDS): Yes
• Ad Blocking: Yes
• IDS/IPS Signatures: 55,000+ with CyberSecure
• VLAN/Subnet-based Traffic Segmentation: Yes

SD-WAN & VPN

• License-Free SD-WAN: Yes

Site-to-Site VPN: - Site Magic: Yes
- IPsec: Yes
- OpenVPN: Yes

VPN Server: - Identity Endpoint One-Click VPN: Yes
- Teleport Zero-Configuration VPN: Yes
- WireGuard: Yes
- OpenVPN: Yes
- L2TP: Yes

VPN Client: - OpenVPN: Yes
- WireGuard: Yes

Advanced Networking

• Multi-WAN Load Balancing: Yes
• Dynamic Routing – OSPF: Yes
• Advanced QoS: Yes
• Multicast DNS (mDNS): Yes
• Advanced NAT: Yes
• SNAT / DNAT
• Masquerade
• NAT Pooling
• 1-to-1 NAT

RADIUS & Management

• Integrated RADIUS Server: Yes
• RADIUS over TLS (RadSec): Yes
• Internet Quality and Outage Reporting: Yes

Management Interfaces: - Ethernet
- Bluetooth

NVR & Storage

• NVR Storage: Selectable NVMe SSD up to 2 TB

Power & PoE

• PoE Budget: 30W
• Max. PoE Wattage per Port (PSE): 30W

• Voltage Range PoE Mode: 50–57V

• Max. Power Consumption: 29.4W (excluding PoE output)

• Power Method: DC jack (54V DC / 1.1A)
• Power Supply: 54V DC / 1.1A (adapter included)
• Supported Voltage Range: 100–240V AC

Hardware Specifications

Dimensions

• Metric: 212.8 x 127.6 x 30 mm
• Imperial: 8.3 x 5 x 0.5"

Certifications

• CE
• FCC
• IC
