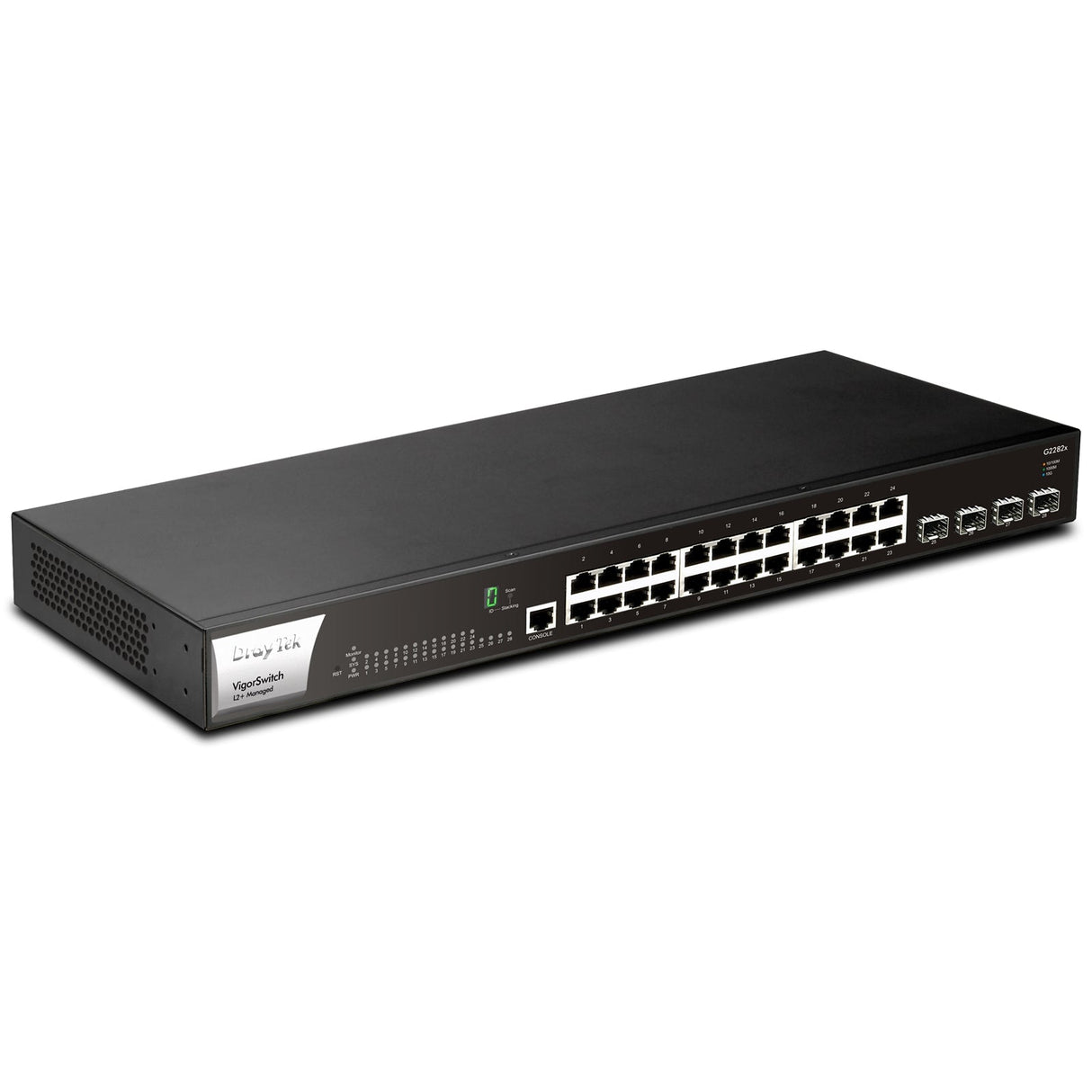

DrayTek VSG2282X-K VigorSwitch G2282x 24 Port Non-POE Fully Managed Layer 2+ Switch with 4x 10GbE SFP Ports

DrayTek VigorSwitch G2282x Layer 2+ Managed 10 Gbps Switch

The DrayTek VigorSwitch G2282x is a Layer 2+ managed 10 Gbps switch designed to enhance network performance, reliability, and control in demanding LAN environments.

Key Features

• Layer 2+ Managed 10 Gbps Switch
• 24 x Gigabit Ethernet LAN ports
• 4 x SFP+ 10 Gbps fiber links for uplink/downlink
• Fixed AC power input plus additional DC power input as an alternative power source
• Helps ensure uninterrupted operation
• Protects connected devices in the event of AC power supply failure

Advanced Layer 3 Capabilities

Supporting advanced Layer 3 features, including DHCP Server and VLAN Routing, the VigorSwitch G2282x:

• Enhances overall network efficiency
• Maintains uninterrupted LAN connectivity even when the gateway is offline
• Provides an excellent solution for networks with increasing traffic demands

Wire-Speed VLAN Routing

• Routes inter-VLAN traffic directly on the switch
• Offloads routing tasks from the router
• Improves overall network performance

Intelligent Traffic Handling

Auto Surveillance & Voice VLAN

• Automatically recognizes traffic from IP cameras and IP phones
• Adds CoS tags for QoS prioritization

QoS (Quality of Service)

• Prioritizes critical traffic using:
• CoS
• DSCP
• IP Precedence tags
• Improves performance for important applications and services

IP Conflict Prevention

• Prevents IP conflicts caused by misconfigured or malicious hosts
• Improves network stability and reliability

Access Control & Security

• Supports Access Control Lists (ACL) by IP/MAC
• Provides 802.1X port access control with RADIUS
• Filters unauthorized hosts for enhanced network security

10G SFP+ Uplinks

• 4 x 10G-capable SFP+ fiber ports
• Ideal for aggregation or uplinking to core switches
• Delivers high-speed connectivity across your network backbone

Improving LAN Sustainability and Efficiency

In large LANs, much of the traffic remains internal (e.g., IP cameras to NVR, IP phones to PBX, clients to file servers). As an L2+ switch with DHCP server and VLAN routing functionalities, the VigorSwitch G2282x:

• Receives traffic before the router
• Shares the processing load with the router
• Helps your LAN continue operating even when the router is offline

DHCP & VLAN Routing

• Acts as a DHCP server, assigning dynamic IP addresses for up to 8 VLANs
• Supports VLAN routing with up to 512 routes

ONVIF-Friendly for Surveillance

• Recognizes ONVIF devices across different VLANs
• Displays surveillance topology
• Provides a user interface for:
• Video streaming
• Device maintenance

The DrayTek VigorSwitch G2282x delivers robust switching, advanced Layer 3 features, and intelligent traffic management, making it a powerful choice for scalable, high-performance LAN environments.
