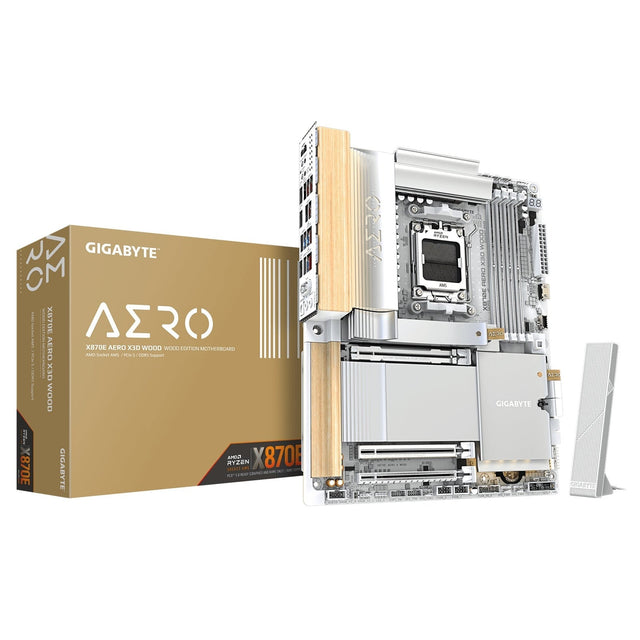

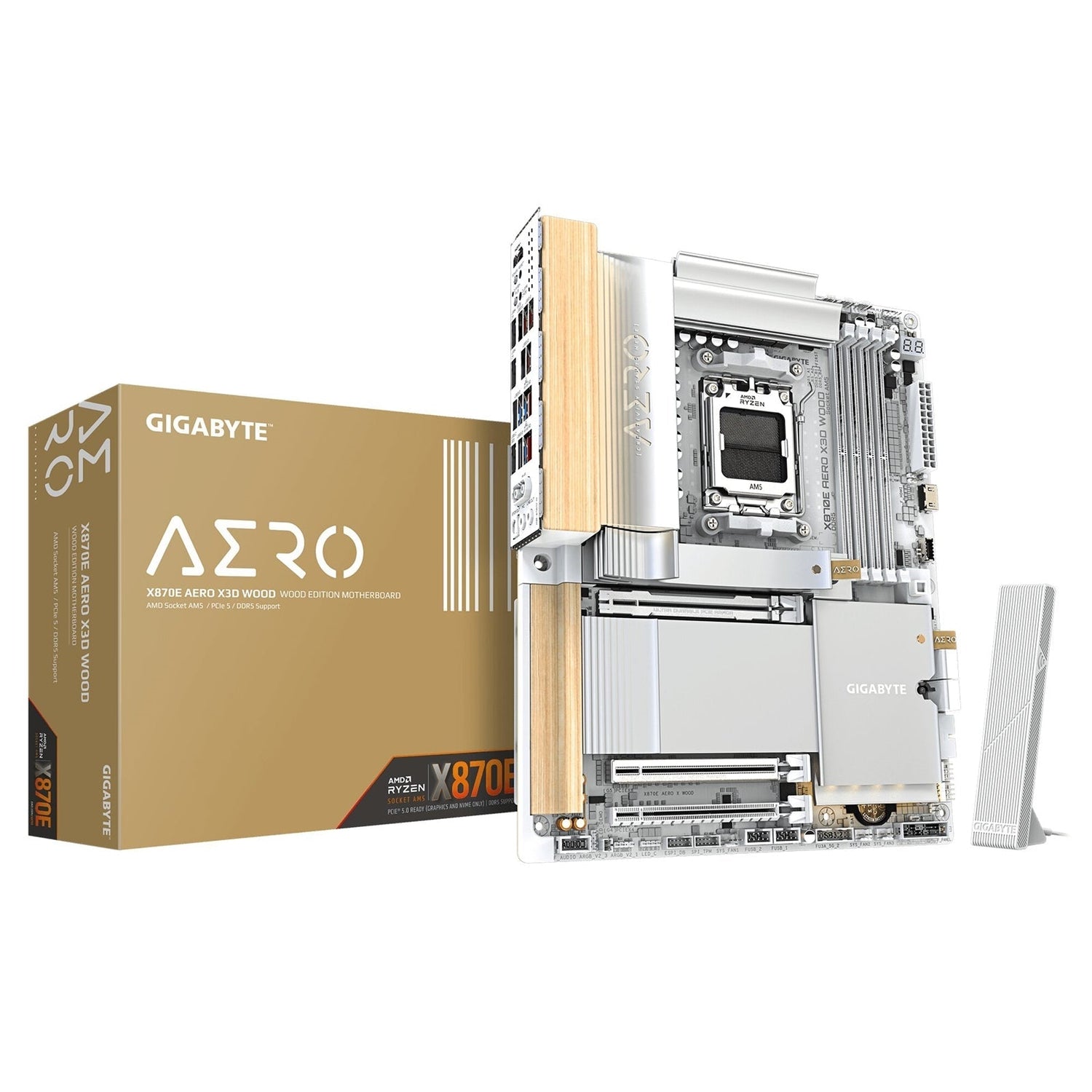

Gigabyte X870E AERO X3D WOOD AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 4x M.2 Sockets, Fitted I/O Shield, 2x 5GbE LAN, Wi-Fi 7, 1x HDMI Port / 2x USB-C (USB4)

X870E AORUS MASTER X3D ICE Motherboard

Key Features

• Raw, textured aesthetics that highlight a timeless, premium design
• X3D Turbo Mode 2.0: AI-optimized performance for X3D with DDR5 OC support up to 9000MT/s
• DDR5 Overclocking: Dual-channel DDR5 with 4 DIMM slots and support for AMD EXPO™
• AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital Twin 16+2+2 Phases VRM Solution for stable power delivery
• Ultra-Fast Storage:
• 4 x M.2 slots, including PCIe 5.0 x4
• M.2 EZ-Flex for high-efficiency heat dissipation and flexible patented baseplate
• M.2 EZ-Latch Click & Plus for quick release and screwless M.2 installation
• Fast Networking: Dual 5GbE LAN and Wi-Fi 7 with directional ultra-high gain antenna
• Extended Connectivity: HDMI and dual USB4 Type-C with DP-Alt support
• PCB Thermal Plate: Up to 14% thermal improvement and reinforced motherboard stability
• Efficient Thermal Design: VRM Thermal Armor Advanced, M.2 Thermal Guard L, and M.2 Thermal Guard Ext
• WIFI EZ-Plug: Quick and easy Wi-Fi antenna installation
• Friendly BIOS UI: Multi-theme interface, one-click screenshot, and click-to-go BIOS path navigation
• PCIe UD Slot X: Reinforced PCIe 5.0 x16 slot with 10x strength for graphics card support
• DriverBIOS Convenience: Wi-Fi driver pre-install, power-on & easy network launch

Specifications

CPU

Chipset

Memory

Onboard Graphics

Audio

LAN

Wireless Communication

Expansion Slots

Notes:
- The PCIEX8 slot shares bandwidth with PCIEX16. When PCIEX8 is populated, PCIEX16 operates up to x8 mode.
- PCIEX16 and PCIEX8 can only support a graphics card or an NVMe SSD. For single graphics card setups, install it in PCIEX16.

Storage Interface

RAID Support:
- NVMe SSDs: RAID 0, 1, 5, 10 (RAID 5 only on AMD Ryzen™ 9000 Series Processors)
- SATA devices: RAID 0, 1, 10

USB

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x CPU fan / water cooling pump header
• 4 x system fan headers
• 2 x system fan / water cooling pump headers
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header (USB 3.2 Gen 2x2)
• 2 x USB 3.2 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 1 x Trusted Platform Module header (GC-TPM2.0 SPI V2 only)
• 1 x HDMI port (Note)
• 1 x reset jumper
• 1 x Clear CMOS jumper
• 2 x temperature sensor headers

Back Panel Connectors

• 1 x Q-Flash Plus button
• 1 x Clear CMOS button
• 1 x power button
• 1 x reset button
• 1 x HDMI port (Note)
• 2 x USB4® Type-C® ports (DisplayPort support, Note)
• 1 x USB Type-C® port (USB 3.2 Gen 2x2)
• 5 x USB 3.2 Gen 2 Type-A ports (red)
• 3 x USB 3.2 Gen 1 ports
• 2 x RJ-45 LAN ports
• 2 x antenna connectors (2T2R)
• 2 x audio jacks
• 1 x optical S/PDIF Out connector

I/O Controller

• iTE® I/O Controller Chip

Hardware Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control (dependent on installed fan/pump)
• Noise detection

BIOS

• 1 x 256 Mbit flash
• AMI UEFI BIOS (licensed)
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

Bundled Software

• Norton Internet Security (OEM version)

Operating System

• Support for Windows 11 64-bit

Form Factor
