ASRock A620AM Pro RS WiFi AMD Socket AM5 Motherboard, 4x DDR5 Slots, 3x M.2 Socket, 2.5GbE LAN, Wi-Fi 6E, 1x HDMI Port / 1x DisplayPort

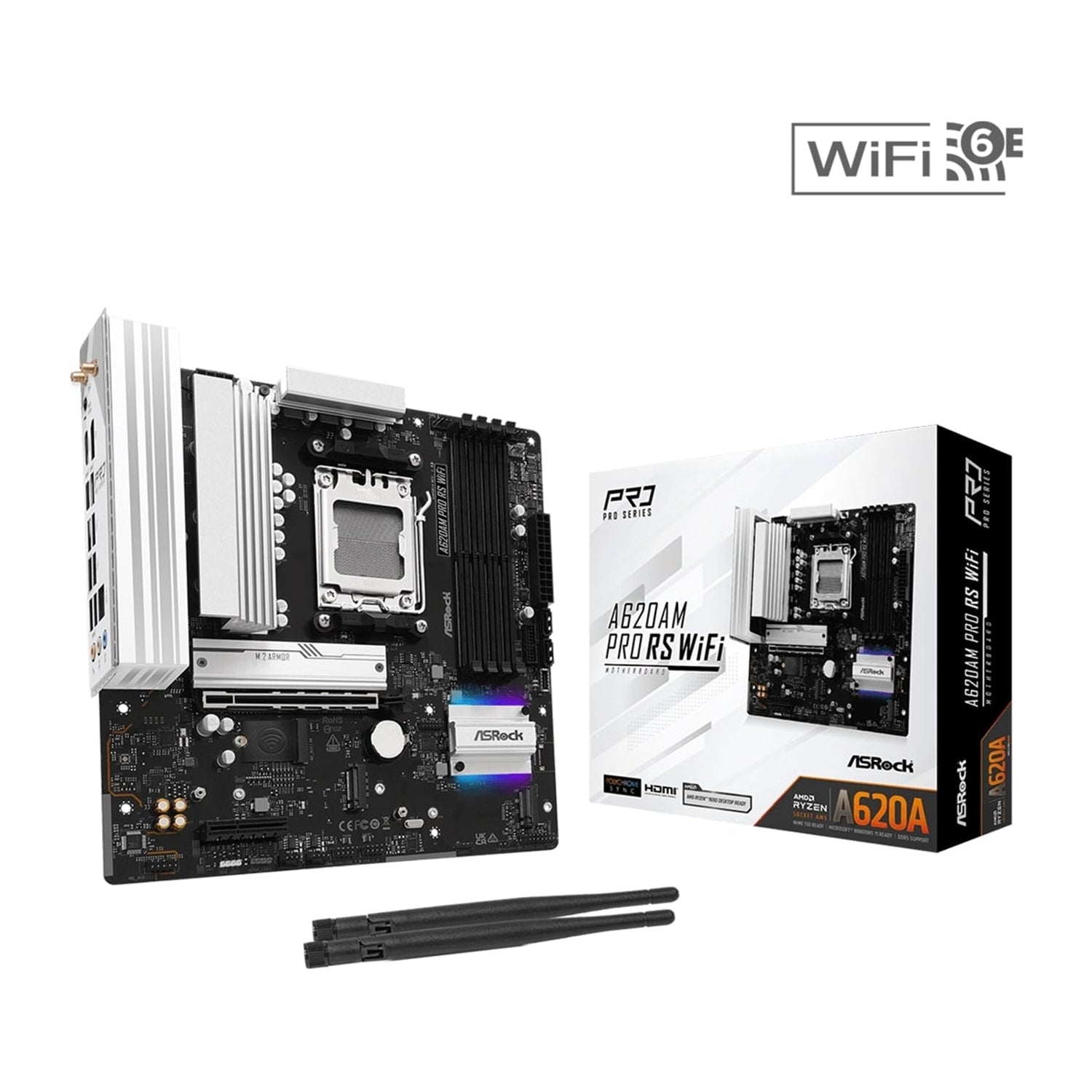

ASRock A620AM Pro RS WiFi Motherboard (Micro ATX, AM5)

The ASRock A620AM Pro RS WiFi brings the modern, futuristic Race Sport (RS) Edition design to the popular PRO series, delivering an attractive balance of specifications, performance, and durability for demanding users and gamers.

Key Features

Optimized Power Design

• 6+2+1 Power Phase Design with Dr.MOS
• Sturdy components and smooth power delivery for enhanced CPU performance.

• Dr.MOS integrated power stage provides higher current and better thermal efficiency than traditional MOSFETs for improved system stability.

• Hi-Density Power Connector

• Designed to withstand higher current than traditional CPU and ATX power connectors.

• Helps provide a more stable system and reduces the risk of fire during heavy overclocking.

• 6 Layer PCB

• Stable signal traces and power shaping for lower temperatures and higher energy efficiency.
• Supports extreme memory performance and the latest DDR5 memory modules.

High-Performance Memory

• Dual Channel DDR5 with XMP & EXPO Support
• Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC).
• Up to 256GB system memory capacity across 4 DIMM slots.
• Pre-tested Intel XMP/AMD EXPO profiles for accessible DDR5 overclocking performance.

Storage & Expansion

• High Speed M.2 Solution

• PCI Express 4.0 M.2 SSD support for up to double the speed of PCIe 3.0, delivering lightning-fast data transfers.

• Flexible PCIe Slots

• 1 x PCIe 4.0 x16 slot (x16 mode)
• 1 x PCIe 3.0 x16 slot (x2 mode)
• 1 x M.2 Key E slot for WiFi/BT module
• 15µ gold contact in VGA PCIe slot for enhanced durability.

Intelligent Cooling

• Aluminum Heatsink Design
• Optimized heatsink layout for efficient heat dissipation.
• Helps maintain system stability and durability under heavy gaming or productivity workloads.

Next-Gen Connectivity

• Wi-Fi 6E 802.11axe
• Extended into the 6GHz spectrum band for more wireless bandwidth and faster internet traffic.

• Enhances lower latency and supports service levels equivalent to 5G networks.

• Dragon 2.5 Gb/s LAN

• Up to 2.5X the bandwidth of standard gigabit Ethernet.

• Ideal for home networking, content creation, online gaming, and high-quality streaming.

• Front USB 3.2 Gen1 Type-C

• Up to 5 Gbps transfer speed with a reversible connector on the front panel.

Immersive Audio with Nahimic

• Audio That Matters
• 7.1 CH HD Audio powered by Realtek ALC897 with Nahimic Audio.

• Engaging, detailed listening experience via headphones, headsets, speakers, USB, Wi-Fi, analog, or HDMI.

• Enhanced Communication Quality

• Static Noise Suppression, Echo Cancellation, Lateral Sound Cancellation, and Voice Stabilizer.

• Powerful algorithms for noise-free conversations, clearer sound, reduced interference, and more consistent vocal levels.

• Ultimate Gaming Experience

• Sound Tracker: Visual radar-style indicator that shows the direction of predominant in-game sounds in 360 degrees for deeper immersion.
• Works with all your favorite audio devices and tools.

Advanced RGB Lighting

• Polychrome RGB
• Onboard RGB and addressable RGB headers.
• Connect compatible LED strips, CPU fans, coolers, chassis, and more.

• Synchronize across Polychrome RGB Sync-certified accessories for unique lighting effects.

• Signal RGB Integration

• Unified RGB control with advanced customization, game-reactive effects, macro automation, and system monitoring.
• Enhanced compatibility with a wide range of RGB devices.

Easy Troubleshooting & Maintenance

• Post Status Checker

• Colored LEDs display real-time CPU, DRAM, VGA, and BOOT status during startup for quick diagnosis.

• EZ Update & EZ Troubleshooter

• BIOS Flashback button for simple BIOS updates.
• ASRock Auto Driver Installer and Post Status Checker for streamlined setup and troubleshooting.

Technical Specifications

CPU & Chipset

Memory

Graphics

Audio

LAN & Wireless

Expansion Slots

Storage

USB

Internal Connectors & Headers

Rear Panel I/O

Software & UEFI

• Software
• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software

• ASRock Polychrome SYNC

• UEFI

• ASRock Full HD UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

Accessories

• 1 x User Manual
• 2 x SATA Data Cables
• 2 x ASRock WiFi 2.4/5/6 GHz Antennas
• 3 x Screws for M.2 Sockets
• 1 x Standoff for M.2 Socket

Form Factor

• Micro ATX: 9.6" x 9.6" (24.4 cm x 24.4 cm)
• Pre-Installed I/O Shield

OS Support

• Microsoft Windows 10 64-bit
• Microsoft Windows 11 64-bit

Certifications

• FCC
• CE
• ErP/EuP ready (ErP/EuP ready power supply required)

Unique Highlights

• Superb Productivity
• Dual Channel DDR5 support
• Rock-Solid Durability with 6+2+1 power phase and Dr.MOS
• Ultrafast connectivity with 2.5G LAN and Wi-Fi 6E
• EZ Update with BIOS Flashback
• EZ Troubleshooter with ASRock Post Status Checker
