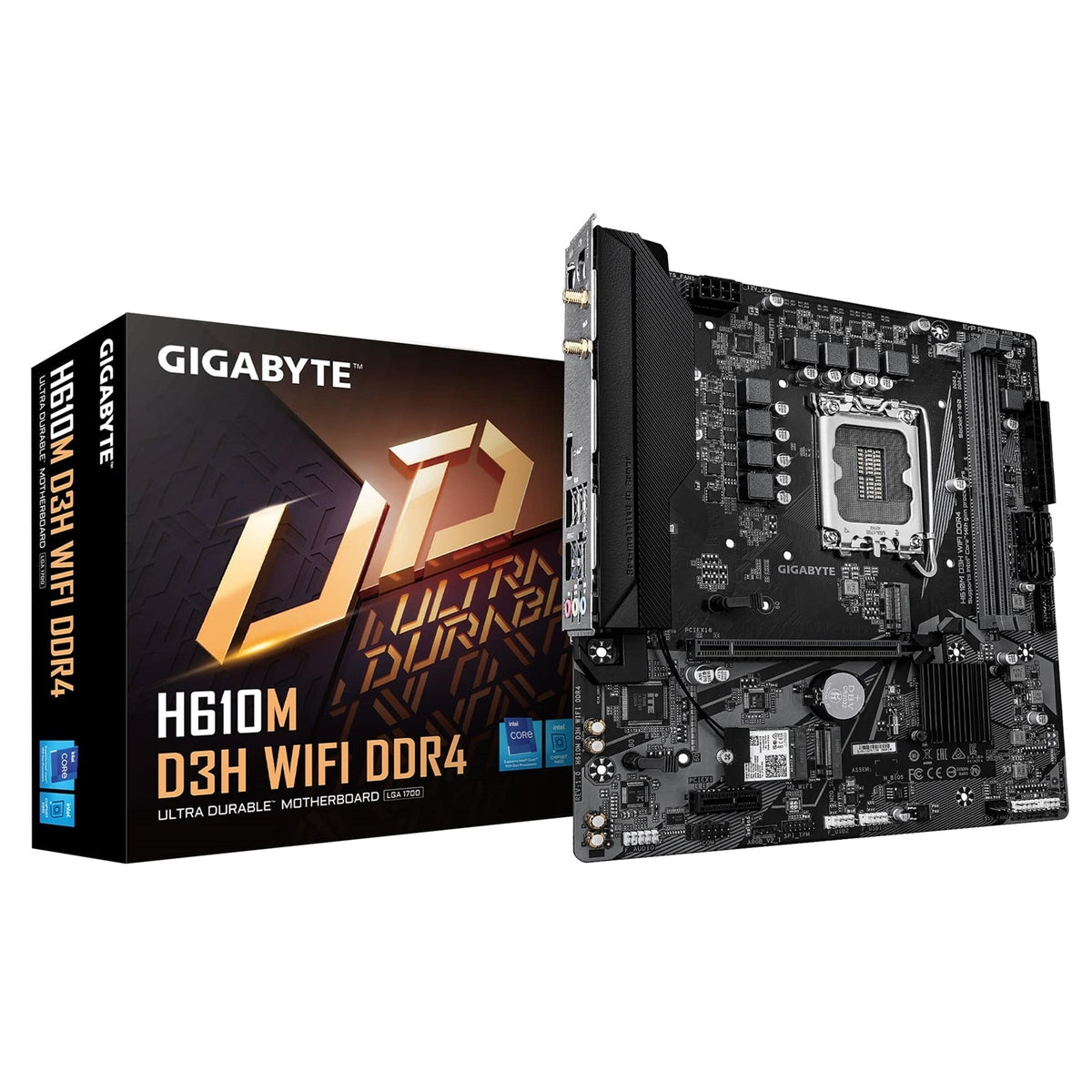

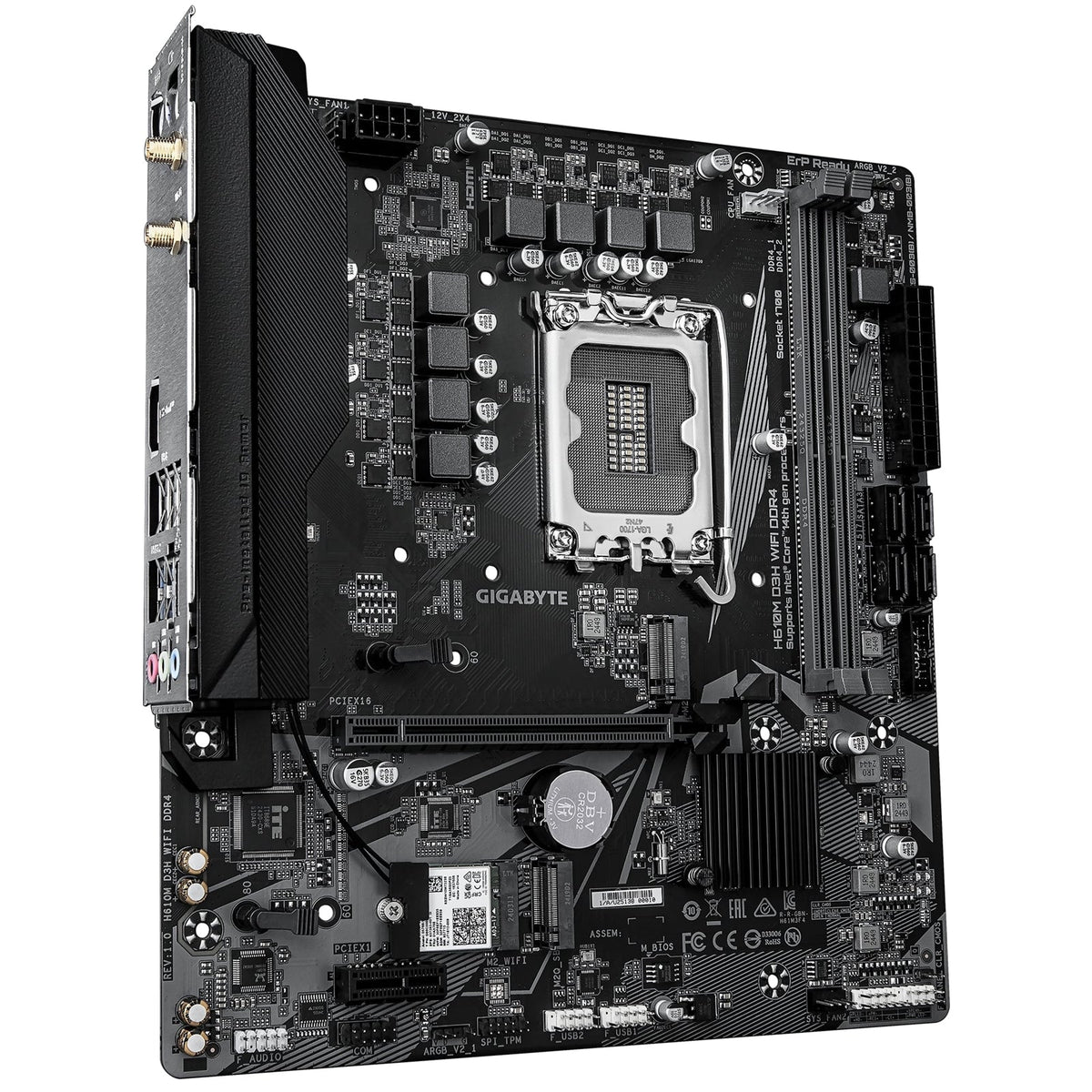

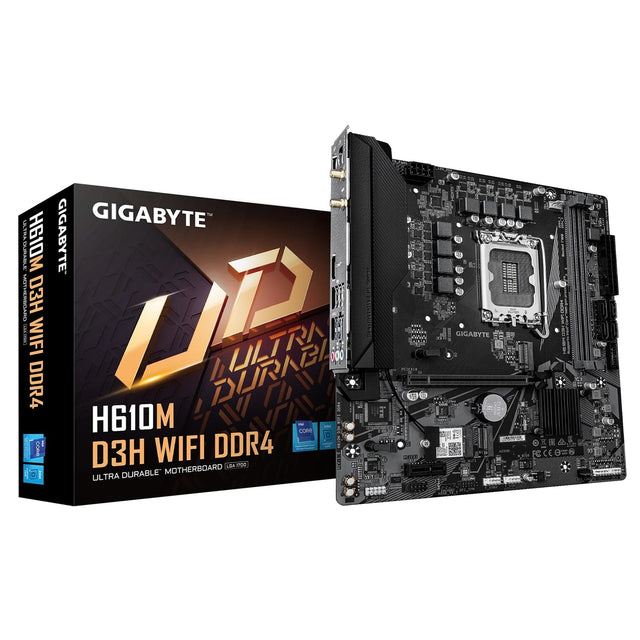

Gigabyte H610M D3H WIFI DDR4 Intel 1700 Socket Motherboard

Gigabyte H610M D3H WIFI DDR4 Motherboard

The Gigabyte H610M D3H WIFI DDR4 is designed to deliver stable power, fast networking, and reliable performance for modern Intel processors. With a 6+1+1 Hybrid Digital VRM design, onboard 802.11ac Wi‑Fi, and NVMe PCIe Gen3 x4 M.2 support, it provides a solid foundation for efficient, responsive systems.

Key Features

• Intel H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design
• Supports Intel Core 14th / 13th / 12th Gen, Pentium Gold and Celeron processors (LGA1700)
• Dual Channel DDR4 Non‑ECC Unbuffered, 2 DIMMs, up to 64 GB
• 6+1+1 Phases Hybrid Power Design
• Low RDS(on) MOSFETs
• Solid capacitors for improved transient response and minimized oscillation
• 8‑pin solid pin CPU power connector
• Cleaner, more efficient power delivery with better thermal performance to help ensure stability under high CPU frequencies and heavy loading
• Fast Networks
• Onboard 802.11ac Wi‑Fi (Dual Band, up to 1.73 Gbps, supports BLUETOOTH 4.2 and above)
• GbE LAN with bandwidth management application to help improve latency and maintain low ping
• Storage
• NVMe PCIe Gen3 x4 M.2 connector support
• Additional M.2 PCIe 3.0 x2 and SATA 6 Gb/s connectors
• Audio
• High-end audio capacitors for high resolution, high fidelity sound
• Audio Noise Guard design separates sensitive analog audio components at PCB level
• Cooling & Control – Smart Fan 6
• Multiple temperature sensors
• Hybrid fan headers with FAN STOP
• Software & Utilities
• GIGABYTE APP Center – simple and easy to use
• LAN bandwidth management software
• Norton Internet Security (OEM version)
• Durability & Design
• Solid pin ATX 12V 8‑pin power connectors
• Anti-Sulfur resistors design
• OS Support
• Windows 11 64‑bit
• Windows 10 64‑bit

Specifications

CPU

Chipset

Memory

(Supported memory types, speeds, and DRAM count may depend on CPU and memory configuration. See GIGABYTE’s “Memory Support List” for details.)

Onboard Graphics

(Graphics specifications may vary depending on CPU support.)

Audio

LAN

Wireless Communication

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots

Storage Interface

USB

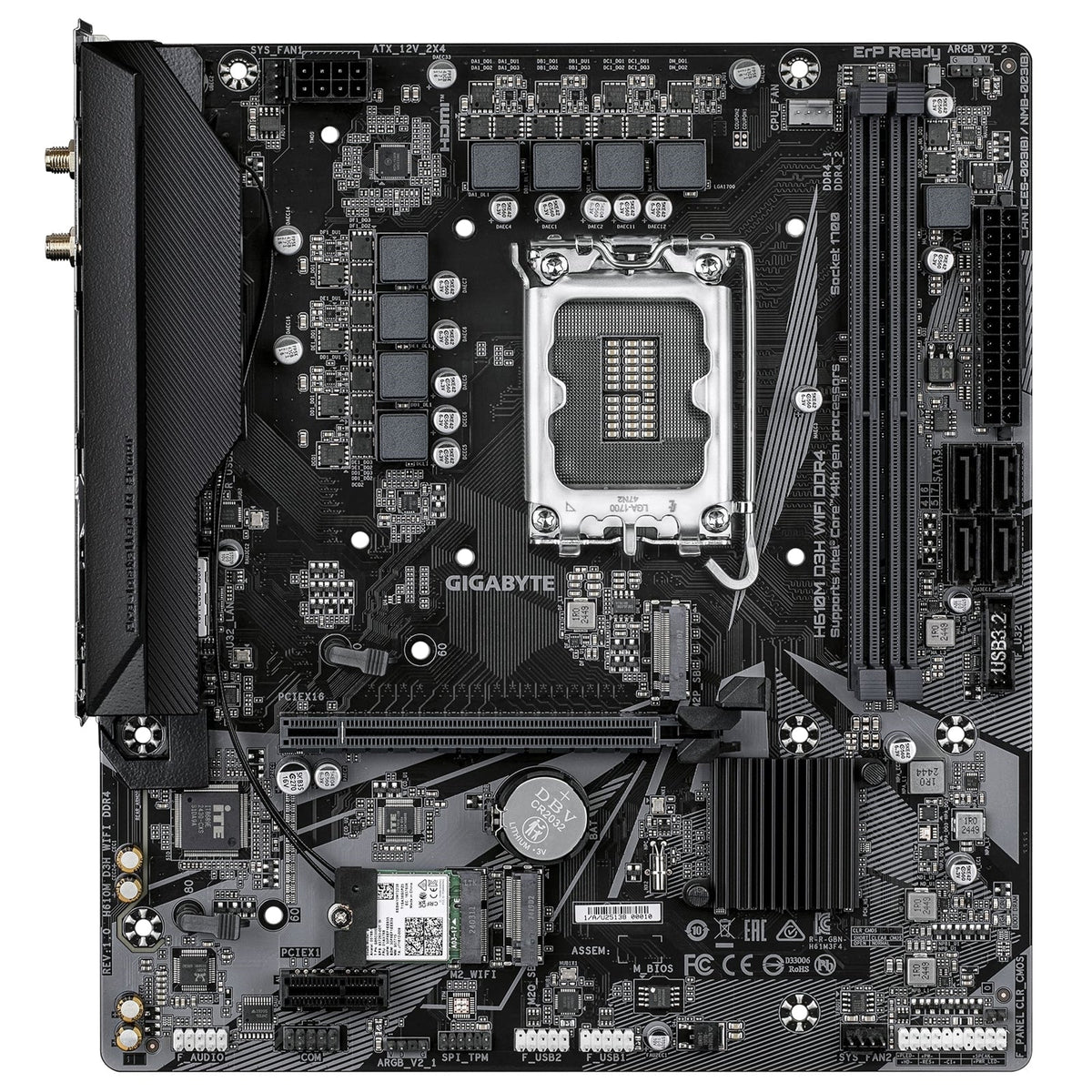

Internal I/O Connectors

• 1 x 24‑pin ATX main power connector
• 1 x 8‑pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6 Gb/s connectors
• 2 x addressable RGB Gen2 LED strip headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (for GC‑TPM2.0 SPI / GC‑TPM2.0 SPI 2.0 / GC‑TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

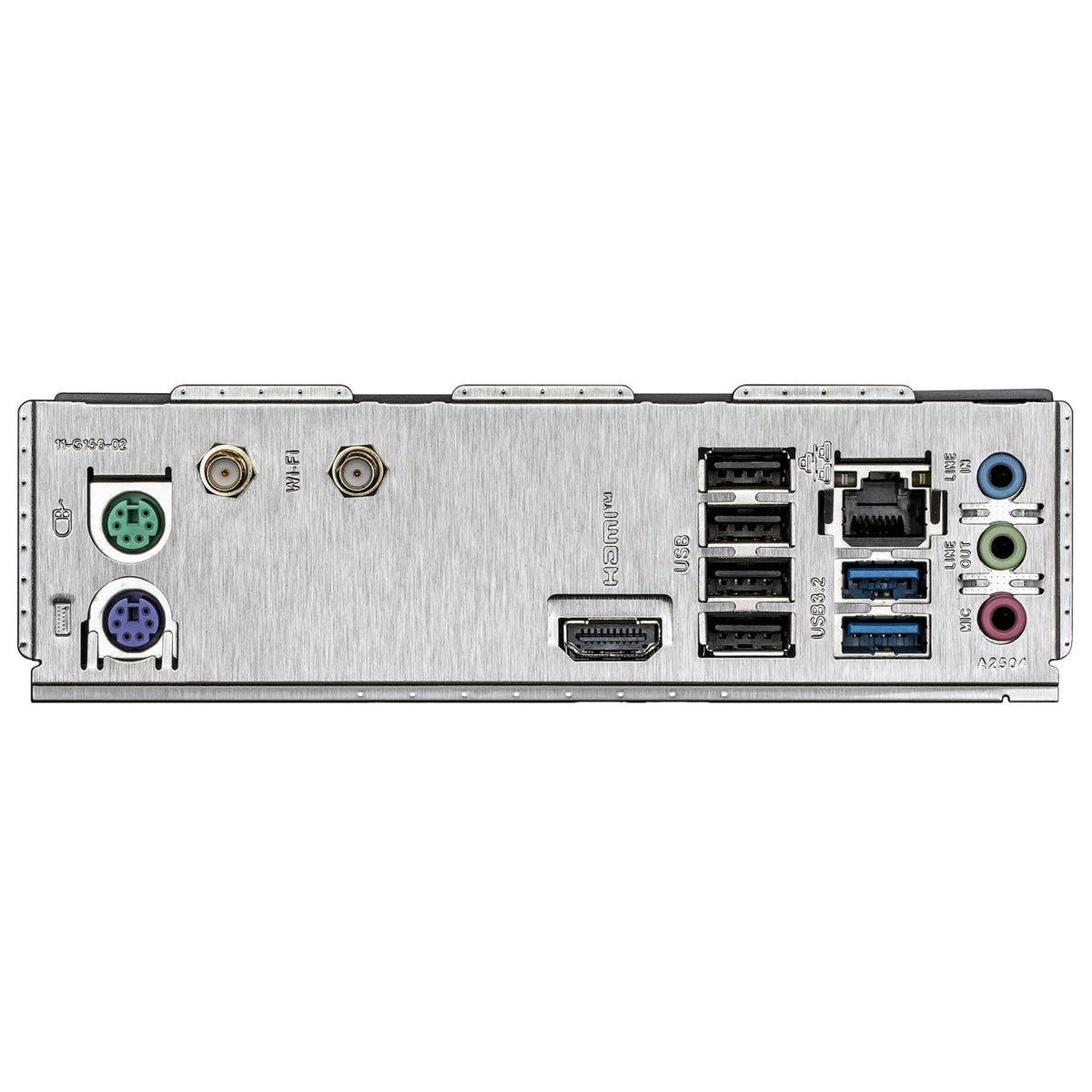

Back Panel Connectors

• 1 x PS/2 keyboard port
• 1 x PS/2 mouse port
• 2 x SMA antenna connectors (2T2R)
• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ‑45 port
• 3 x audio jacks

I/O Controller

• iTE I/O Controller Chip

Hardware Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

BIOS

• 1 x 128 Mbit flash
• AMI UEFI BIOS (licensed)
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q‑Flash

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64‑bit
• Windows 10 64‑bit

Form Factor
